ESP32 LoRa V3 Development Board with 3000mAh Battery Set – with 823-928MHz Antenna and SX1262 LoRa V3 Devices for Meshtastic Ar duino LoRawan IOT

Product description

ESP32 LoRa V3 Board + 3000mAh Battery

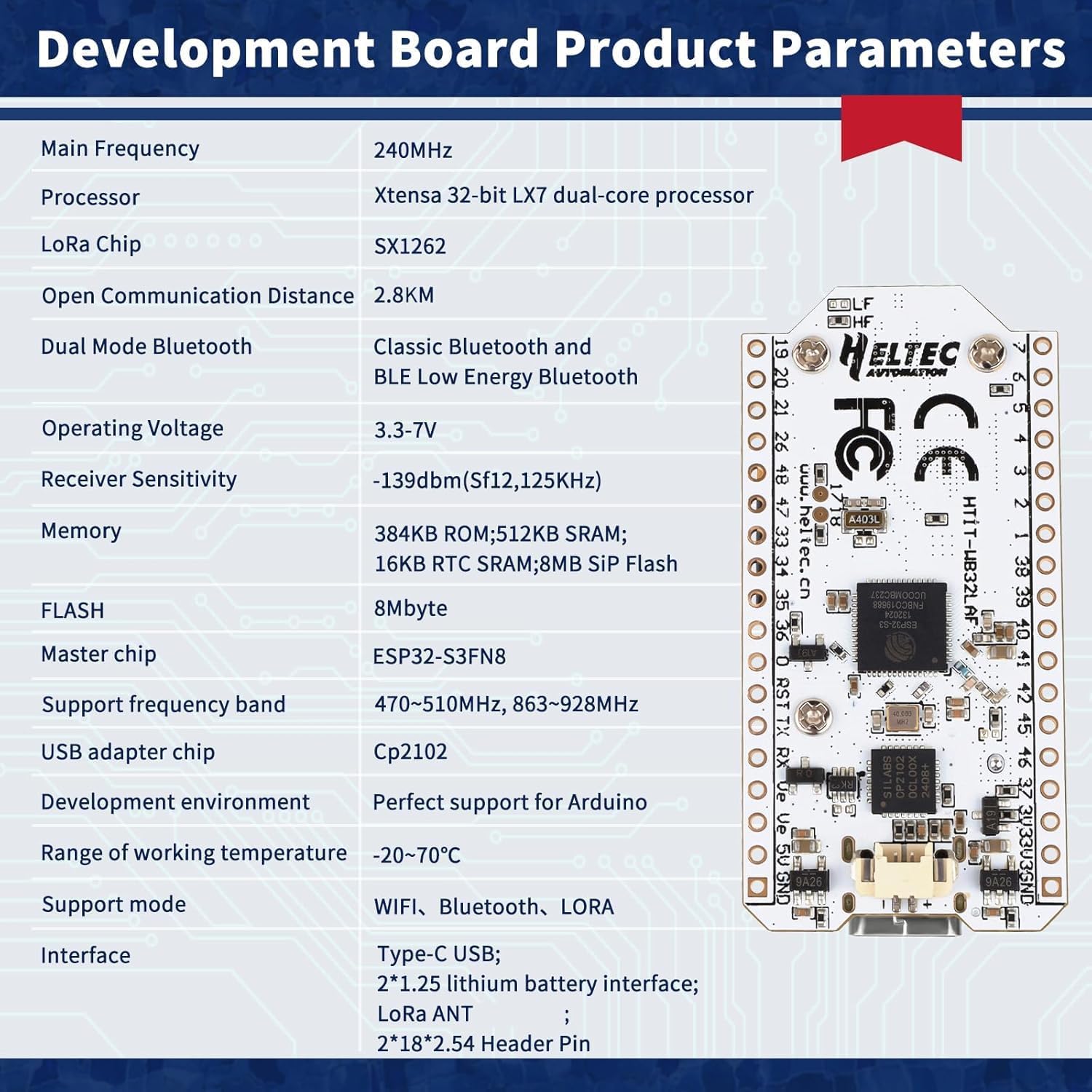

Specifications of ESP32 LoRa V3 Development Board:

Master Chip ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor) LoRa Node Chip SX1262 USB to Serial Chip CP2102 Frequency 470~510MHz, 863~928MHz Max. TX Power 21±1dBm Max. Receiving sensitivity -134dBm@SF12 BW=125KHz Wi-Fi 802.11 b/g/n, up to 150Mbps Bluetooth Blue tooth 5 (LE) Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT; 2*18*2.54 Header Pin Battery 3.7V lithium battery power supply and charging Operating Temperature -20 ~ 70 ℃ Dimensions 50.2 * 25.5* 10.2 mm

Can the onboard 2.4GHz antenna be replaced?

The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless signals.

Can ESP32’s WiFi and Blue tooth be used at the same time?

No, the WiFi LoRa 32 don’t have an external PSRAM.

What development methods does it support?

-Ar duino;

-Micro Python;

-Platform.io;

-Espressif IDE.

We strongly recommend using Arduino. We provide complete LoRaWAN code for ESP32 Arduino framework.

Meshtastic screen has a digital front-end issue?

It’s caused by the meshtastic setting. Changing the default screen to SSD1306 can solve the problem.

The specific steps are as follows:

“Radio configuration”→”Display”→”Override OLED auto-detect”→”SSD1306”

Advanced Dual-Core Processor: Unleash the full potential of your IoT projects with our ESP32 LoRa development board featuring the powerful ESP 32-S3FN8 dual-core processor. With a clock speed of up to 240 MHz and a five-stage pipeline architecture, this board offers high performance for complex applications.
Excellent Connectivity: Experience seamless connectivity with integrated Wi-Fi, LoRa, and Blue tooth capabilities. Our board features a dedicated 2.4 GHz metal spring antenna for Wi-Fi and Blue tooth, as well as an SMA interface reserved for LoRa use, ensuring stable and long-range wireless communication.

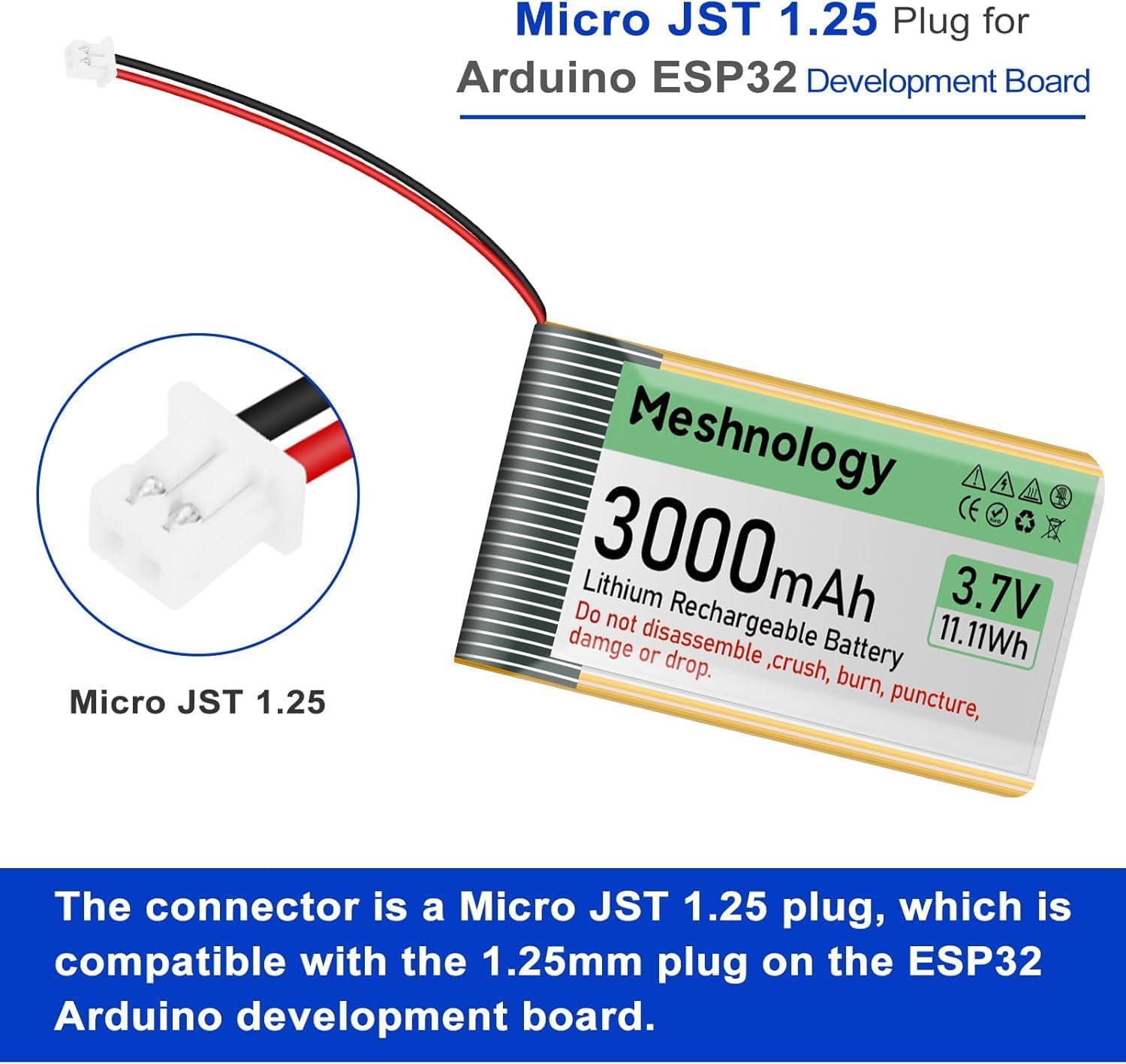

Robust Power Management: Equipped with a 3000 mAh battery and an integrated SH1.25-2 battery interface, our development board features a comprehensive lithium battery management system. It features charge and discharge management, overcharge protection, battery level detection, and automatic switching between USB and battery power sources.
Enhanced user interface: Our development board features a 0.96-inch OLED display with a 128 x 64 dot matrix, perfect for displaying debugging information and battery levels. The USB Type-C interface offers full voltage regulation, ESD protection, short-circuit protection, and RF shielding for added safety and reliability.
Developer-friendly design: Our board is specifically designed for developers and supports the Ar duino development environment. It features an integrated CP 2102 USB-to-serial chip for easy programming and debugging. It also features an excellent RF circuit design and low power consumption, making it ideal for scalable IoT solutions.
